| Products discription | |||||
|---|---|---|---|---|---|
| Model Number: | 110.36.1140.121.04.11 | Brand name | longwei | ||
| Production Experience | Since 2004 | Applicable Industries: | Military,Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining, Food & Beverage Shops | ||
| Feature: | Single Row Crossed Roller | Gear Options: | without Gear | ||
| Material: | 50Mn/42CrMo/Customized | Seals Type: | NBR or as requirement | ||
| MOQ | 1 set | CERTIFICATE: | ISO9001:2008/SGS | ||
| Bore Diameter | 1290 mm | Outside Diameter | 1560mm | ||
| Operating tempereature: | -30°C +70°C | Hardness: | 207-262HB | ||

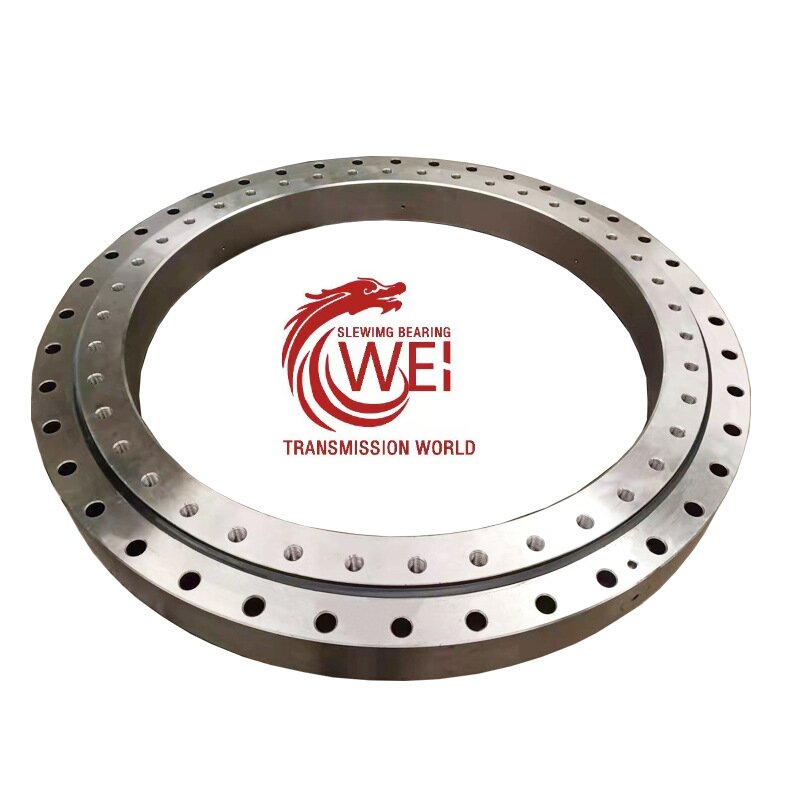

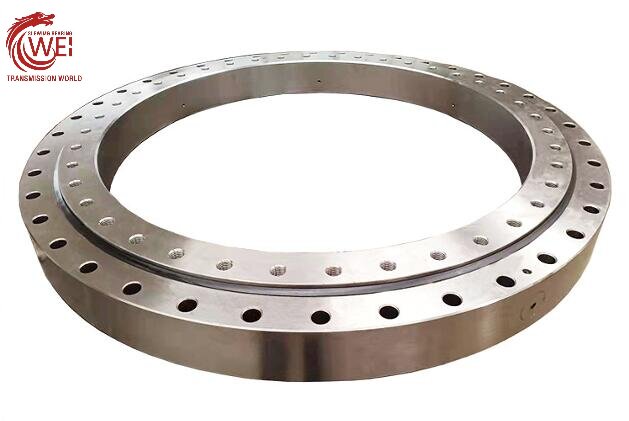

| Product Name: | High Precision Single Row Crossed Roller without Gear Slewing Ring | Service: | OEM Service.Design Service | ||
| Net Weight : | 415kgs | Rolling element: | Roller & Spacer | ||
| Warranty Period | 1 year | Testing | In house or third party | ||
| Key Word | High Precision Small Diameter Slewing Bearing | Size | Standard OR Customized | ||
| Height | 95mm | H.S. Code | 848210900 | ||
| Packaging Details | 1.Filling with rust-proof oil 2.packing with protective layers 3.Fixed in the plywood 4.Packaging terms:Plywood case/ Pallet/Steel frame | Product Type: | Single Row Crossed Roller |
The single row crossed roller bearing has been widely used in many applications:
- Military product
- Automation machinery, Robots
- Medical equipment

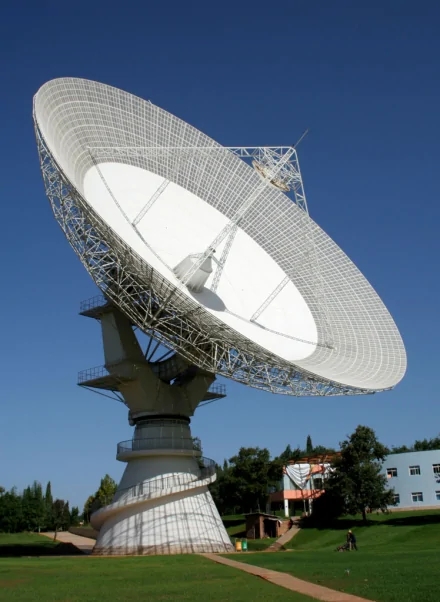

- Radar equipment
- Tank
- Grinding machine and drilling machine.
Note:
1. N1 is the numbers of lubricating holes. Oil cup M10×1JB/T7940.1~JB/T7940.
2.The Oil nipple’s location can be change according to the user’s application.
3. n-φ can change to tapped hole, the diameter of tapped hole is M, and depth is 2M.
4. The tangential tooth force in the form is the max tooth force; the nominal tangential tooth force is 1/2 of the max one.
5. “K” is addendum reduction coefficient.
| Plane deviation of mounting bracket P (mm) | ||||
|---|---|---|---|---|
| Raceway center diameter | Plane deviation of mounting bracket P (mm) | |||
| DL(mm) | single row four ball | double row ball | cross roller | |
| ~1000 | 0.15 | 0.2 | 0.1 | |
| >1000~1500 | 0.19 | 0.25 | 0.12 | |
| >1500~2000 | 0.22 | 0.3 | 0.15 | |
| >2000~2500 | 0.25 | 0.35 | 0.17 | |
| >2500~4000 | 0.3 | 0.4 | 0.2 | |
| >4000~6000 | 0.4 | 0.5 | 0.3 | |
| >6000~8000 | 0.5 | 0.6 | 0.4 | |
Our Services & Strength
1.Raw material from reliable suppliers;
2.Production process is in strict accordance with ISO9001 Quality Management System .
3.Strict in-process quality control and 100% finished product inspection before delivery;
4.Third party product inspections are acceptable upon customer request.
5.Adoption of standardized product design process and APQP, PPAP, FEMA for application analysis.
- Manufacturer of producing bearing for about twenty years.
7. Advanced mechanical equipment and strict quality control team.
8. Efficient production speed and on-time delivery service.
9. Accept standard and non-standard production.
- If you are a customer buying standard products, please consult customer service for detailed drawings
- .If you need customized products, please send the drawing to me in time, and I will make the quotation and production time for you.
- Please feel free to contact me if you have any other requirements. I will reply to you in time.
